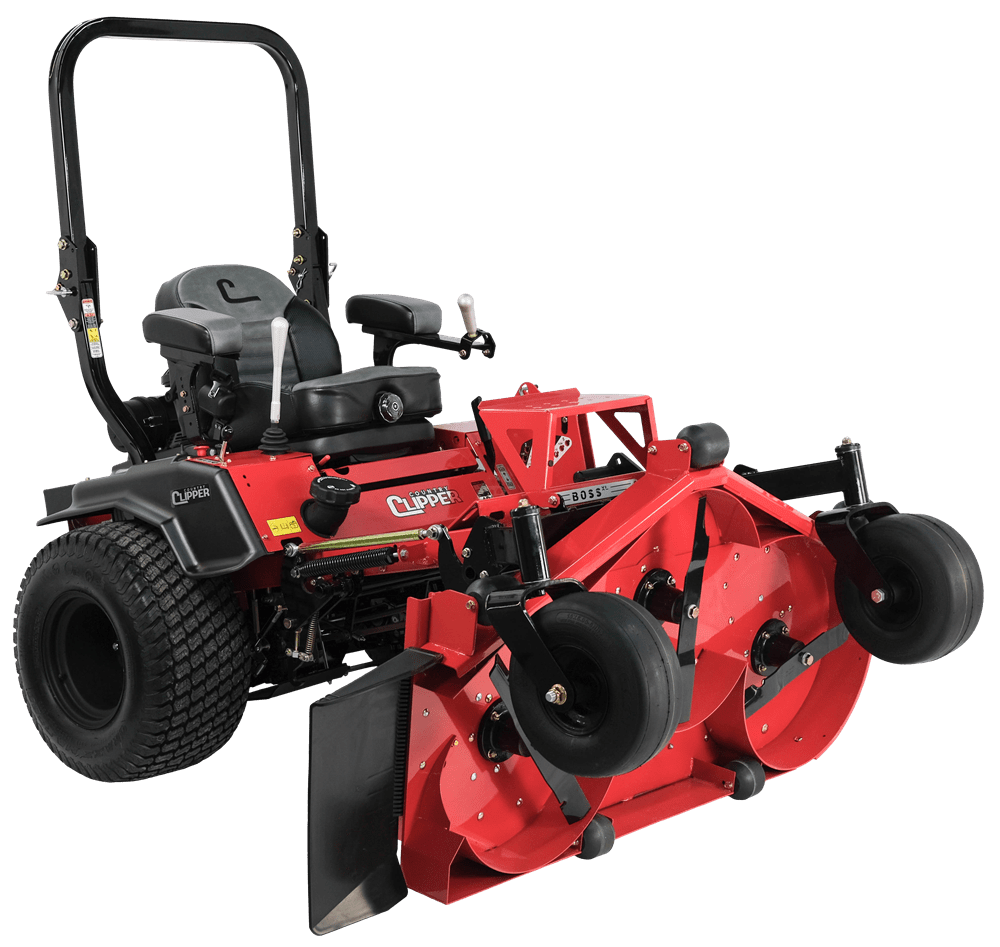

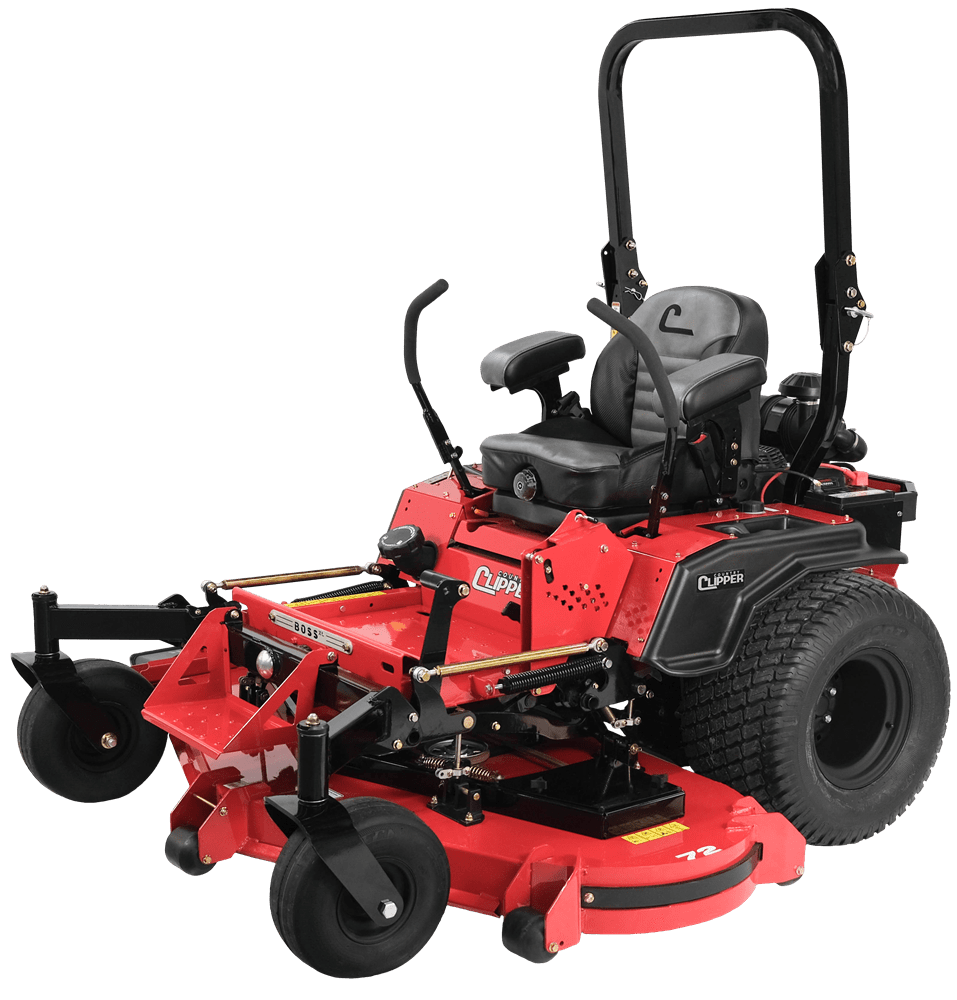

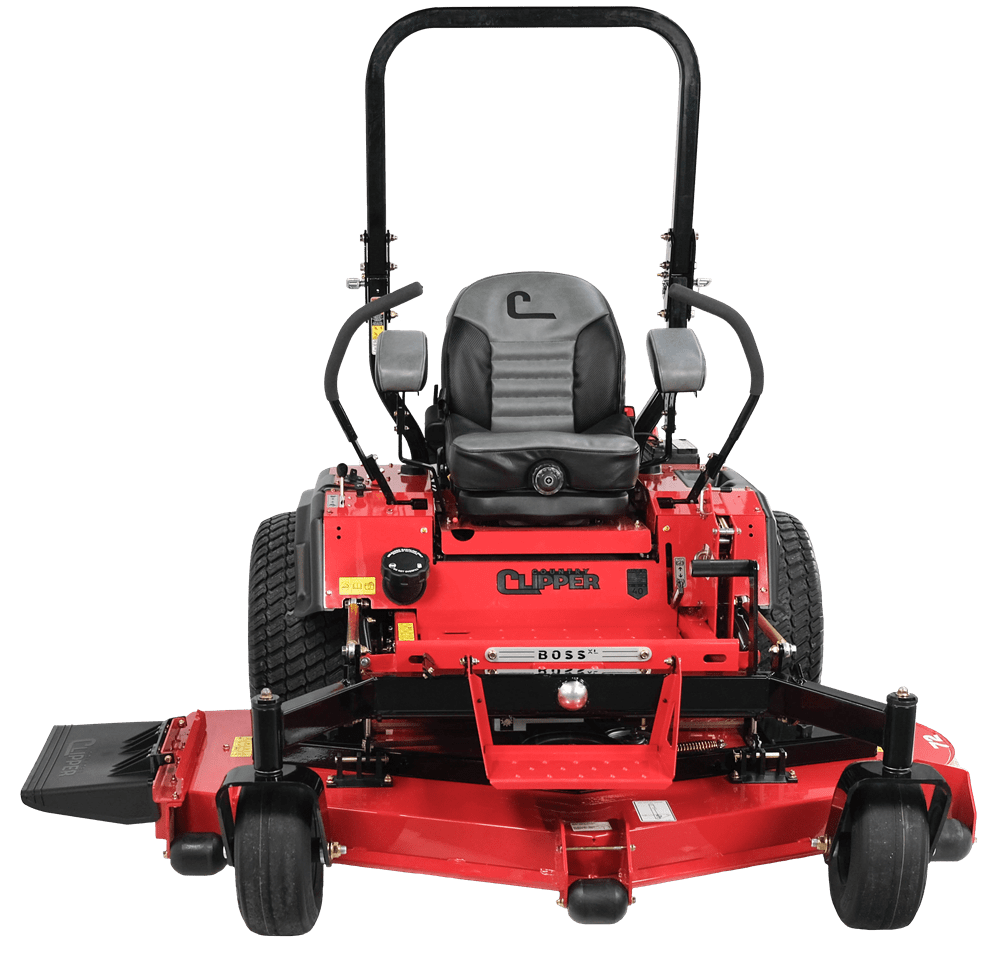

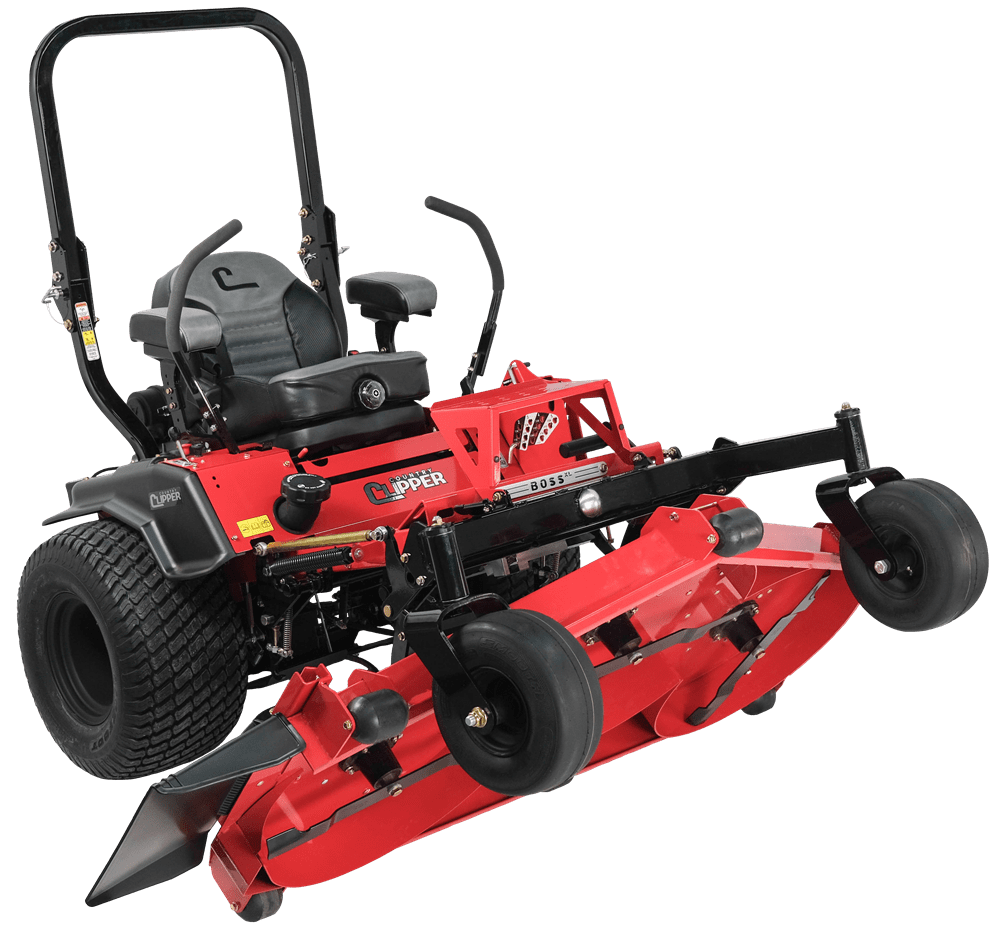

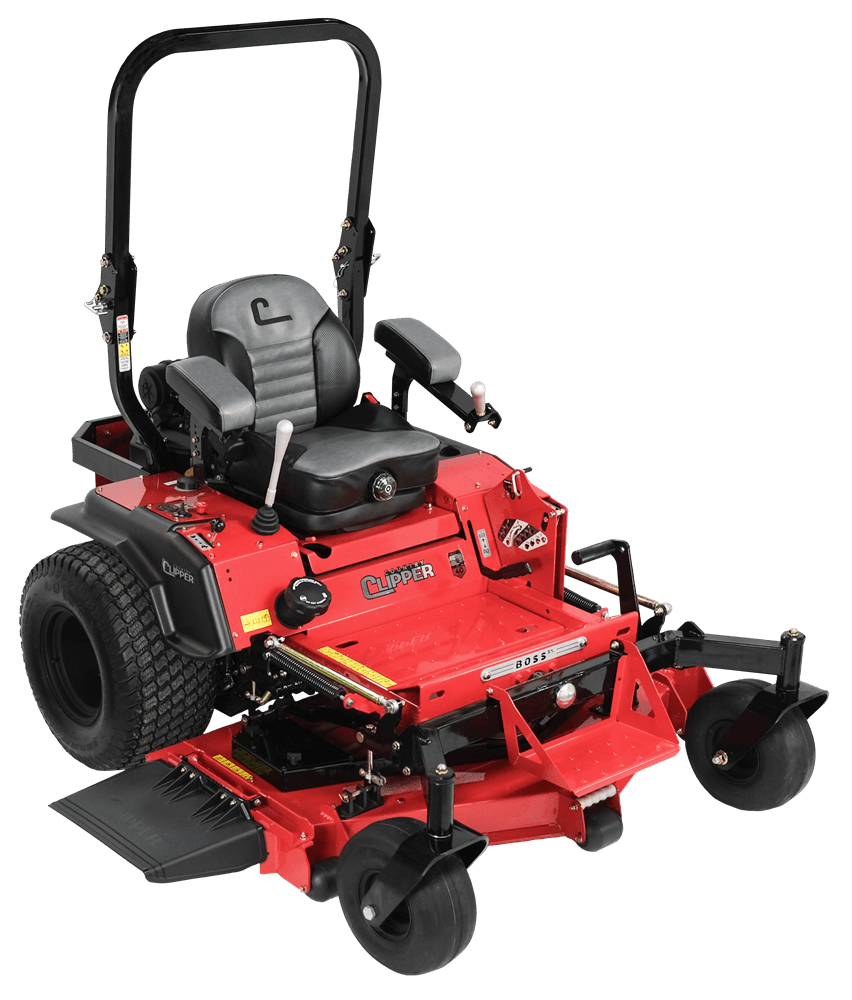

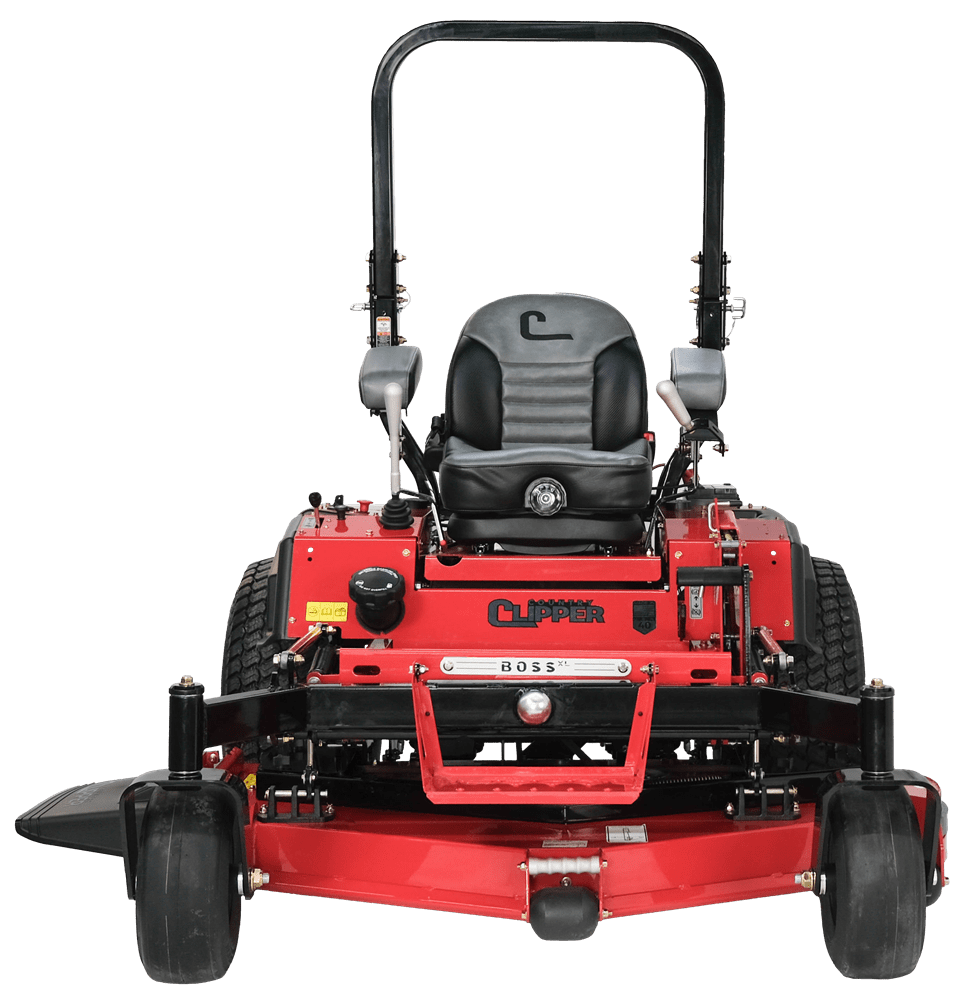

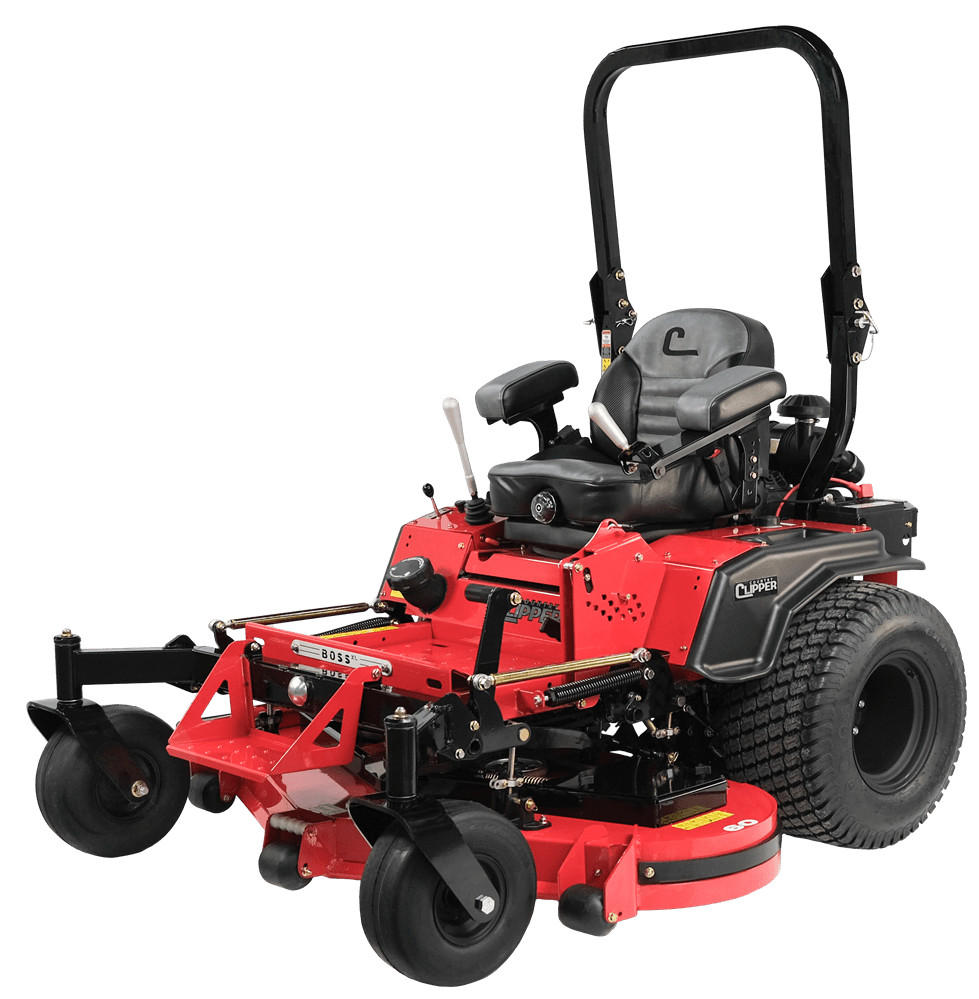

The BossXL was designed with superior performance in mind, boasting exceptional controls and traction in a wide range of conditions. And through our exhaustive testing standards, we ensure your new mower is ready for years and years of heavy use.
| Specifications | |
|---|---|
| Engine | Kawasaki FX1000V, Kawasaki FX921V |
|
Horsepower |
31 HP, 35 HP |
|
Cylinders |
2 |
|
Oil Capacity |
2 qt. (1.9 L) |
|
Drive System |
Hydro-Gear® ZT-5400 |
|
Fuel Capacity |
10.25 Gallon |
|
Steering Control |
Joystick, Twin Lever |
|
Stand-up Deck |
Standard |
|
ContourDTS™ Equipped |
Standard |
|
Roll-Over Protection |
Standard |
|
Tires, Rear |
26×12-12, 26×14-12 |
|
Tires, Front |
15×6-6 |
|
Turning Radius |
Zero-Turn |
|
Ground Speed (Forward / Reverse) |
12.5 mph/7.5 mph |
|
Length |
84-1/2″, 86″ |
|
Height : top of ROPS extended |
75″, 76″ |
|
Height : top of ROPS folded |
48″, 49″ |
|
Width, Tractor (outside rear tires) |
57-1/2″, 59-1/2″ |
|
Width, Deck w/ Chute |
73″, 85″ |
|
Width, Deck Chute Up |
61″, 73″ |
|
Cutting Width |
60″, 72″ |
|
Cutting Height |
1.5″ – 5″ (1/4″ increments) |
|
Deck Construction |
Laminated Welded 10 Gauge Steel Deck with 10 Gauge Reinforcement and additional 7 Gauge Spindle Mounting Reinforcement, protective bullnose front, high impact anti-scalp rollers, and wear bar |
|
Blade Engagement |
Electric Clutch, Ogura |
|
Blade Length |
21″, 25″ |
|
Spindle Assembly |
Cast iron housing; 1.5″ diameter shaft; maintenance free & field serviceable |
|
Blade Tip Speed, approx. |
19,000 fpm |
|
Weight |
1,330 – 1,424 |
|
Seat |
Suspension Seat with 3″ Adjustable Travel, Vibration Isolators, Adjustable Seat Back Recline, Adjustable Lumbar Support and Adjustable Arm Rests |
|
Other Standard Features |
Cup Holder, Electric Fuel Gauge, Electric Start, Front Step, Hour Meter, Storage Tray, Trailer Hitch Receiver |
